Ultra Low Vf Schottky Barrier Rectifier 100v 40V 60V 100V 2A SS26 SS210 Ss24 Smd Diode

Name: Ultra Low Vf Schottky Barrier Rectifier 100v 40V 60V 100V 2A SS26 SS210 Ss24 Smd Diode
Brand: trusTec
Price: 1 USD

Buy cheap Ultra Low Vf Schottky Barrier Rectifier 100v 40V 60V 100V 2A SS26 SS210 Ss24 Smd Diode product

Brand Name : trusTec

Model Number : SS24

Certification : ROHS

Place of Origin : China

MOQ : 3K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 3K PCS per tape&reel, 48K PCS per carton.

Operating temperature : -65°C ~ 125°C

Ifsm : 50A

Vf : 0.55V

If : 2A

Vrrm : 40V

Packing : tape&Reel

Package : SMB

Type : Schottky Diode

Contact Now

ROHS Compliant Surface Mount Schottky Barrier Rectifier Diode SS24 SS26 SS210 2A 40V 60V 100V

SS22 THRU SS220

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts

Forward Current - 2.0 Ampere

Features

Metal silicon junction, majority carrier conduction

High surge capability

High temperature soldering guaranteed: 260°C/10 seconds

High current capability, low forward voltage drop

Guarding for over voltage protection

RoHS Compliant

Mechanical Data

Case: SMB molded plastic

Molding compound, UL flammability classification rating 94V-0

Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102

Polarity: Color band denotes cathode end

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

	SYMBOLS	SS22	SS23	SS24	SS25	SS26	SS28	SS210	SS215	SS220	UNITS
Reverse Voltage	VRRM	20	30	40	50	60	80	100	150	200	VOLTS
Forward Current	IAV	2									Amp
Surge Current	IFSM	50									Amps
Forward Voltage	VF	0.55			0.70		0.85			0.95	Volts
Reverse Current	IR	0.5							0.2		mA
Operating Temperature	TJ	-65 to +125					-65 to +150				℃

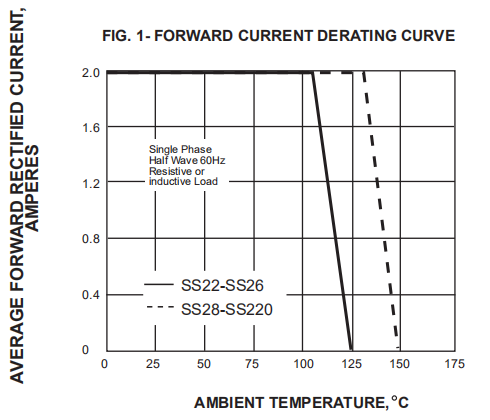

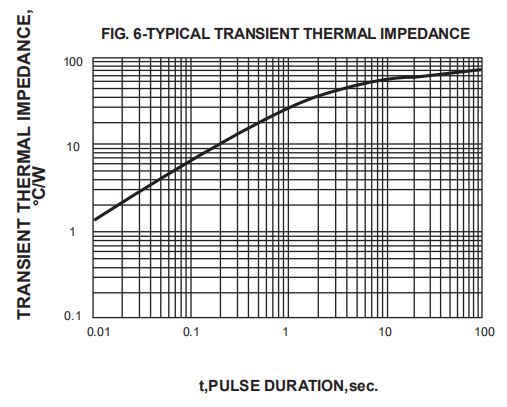

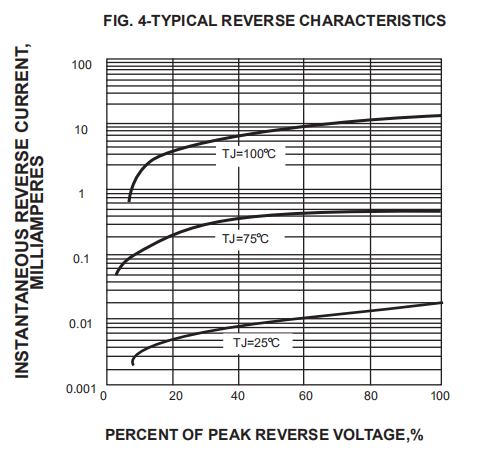

Ratings and Characteristic Curves

Ultra Low Vf Schottky Barrier Rectifier 100v 40V 60V 100V 2A SS26 SS210 Ss24 Smd Diode

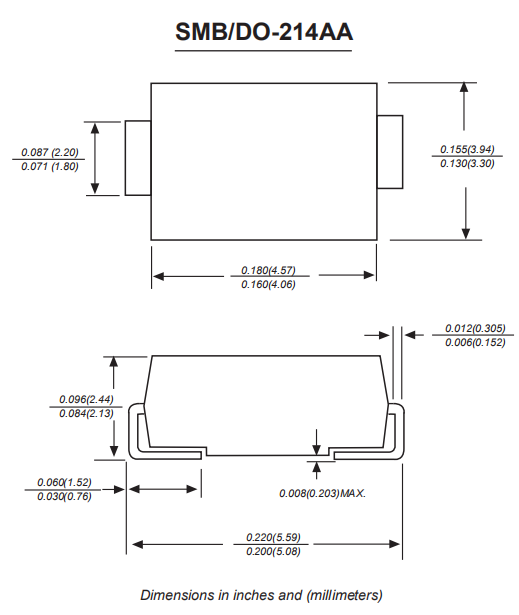

Package Outline Dimensions
