Electronic Components SMD Schottky Barrier Diode 3.0a 40V SS34A SK34A Diode SMA

Name: Electronic Components SMD Schottky Barrier Diode 30a 40V SS34A SK34A Diode SMA
Brand: trusTec
Price: 1 USD

Buy cheap Electronic Components SMD Schottky Barrier Diode 3.0a 40V SS34A SK34A Diode SMA product

Brand Name : trusTec

Model Number : SS34A

Certification : ROHS

Place of Origin : China

MOQ : 5KPCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 5K PCS per tape&reel, 100K PCS per carton.

Product Name : surface mount schottky diode

Case Style : SMA

Forward Current : 3A

Reverse Voltage : 40V

Leakage Current : 0.5mA

Forward Voltage : 0.55V

Contact Now

SS34A SK34A SMD Schottky Barrier Rectifier Diode 3 AMP 40V Surface Mount Diode SMA Package

SS32A THRU SS320A

SK32A THRU SK320A

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts

Forward Current - 3.0 Ampere

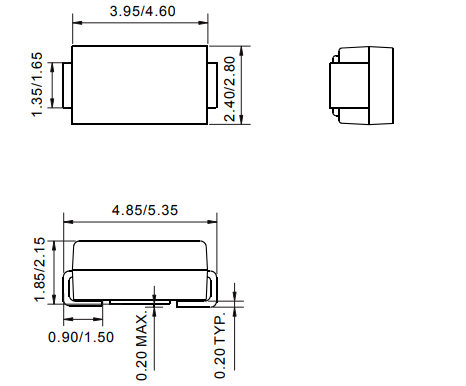

Package Outline Dimensions

Electronic Components SMD Schottky Barrier Diode 3.0a 40V SS34A SK34A Diode SMA

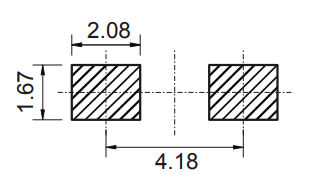

Mounting Pad Layout

FEATURES

Metal silicon junction, majority carrier conduction

High surge capability

High temperature soldering guaranteed: 260°C/10 seconds

High current capability, low forward voltage drop

Guarding for over voltage protection

RoHS Compliant

MECHANICAL DATA

Case: SMA molded plastic

Molding compound, UL flammability classification rating 94V-0

Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102

Polarity: Color band denotes cathode end

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

	SYMBOLS	SS32A	SS33A	SS34A	SS35A	SS36A	SS38A	SS310A	SS315A	SS320A	UNITS
	SYMBOLS	SK32A	SK33A	SK34A	SK35A	SK36A	SK38A	SK310A	SK315A	SK320A	UNITS
Reverse Voltage	VRRM	20	30	40	50	60	80	100	150	200	VOLTS
Forward Current	IAV	3									Amp
Surge Current	IFSM	80									Amps
Forward Voltage	VF	0.55			0.70		0.85			0.95	Volts
Reverse Current	IR	0.5							1		mA
Operating Temperature	TJ	-65 to +125					-65 to +150				℃

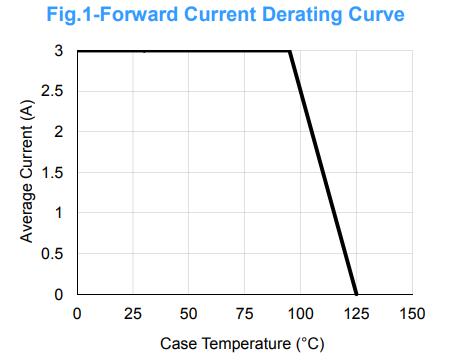

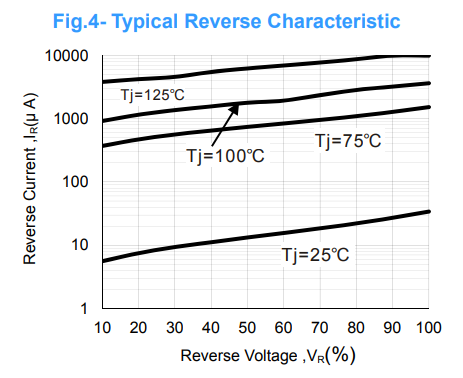

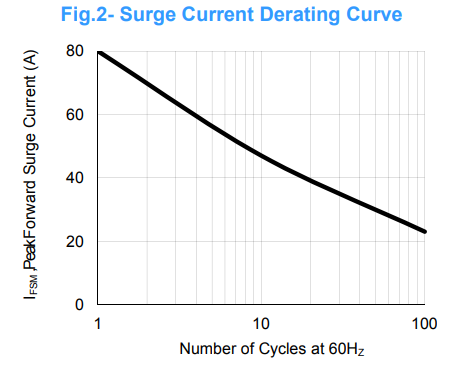

RATINGS AND CHARACTERISTIC CURVES

Product Tags:

SK34A Schottky Barrier Diode 3.0a

SS34A diode 3.0a 40V

schottky barrier rectifier 40v 3a
