Ss54 Ss56 SMD Schottky Barrier Diode 5a 40V 100V 60V Diode SMC Package

Name: Ss54 Ss56 SMD Schottky Barrier Diode 5a 40V 100V 60V Diode SMC Package
Brand: trusTec
Price: 1 USD

Buy cheap Ss54 Ss56 SMD Schottky Barrier Diode 5a 40V 100V 60V Diode SMC Package product

Brand Name : trusTec

Model Number : SS510

Certification : ROHS

Place of Origin : China

MOQ : 3KPCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 3K PCS per tape&reel, 48K PCS per carton.

Product Type : SMD schottky diode

Product Series : SS52 THRU SS520

Forward Current : 5A

Forward Voltage : 1V

Reverse Voltage : 100V

Reverse Current : 0.5mA

Package : SMC

Packing : Tape & Reel (T/R)

Contact Now

5 AMP 40V 60V 100V SMD Schottky Barrier Rectifier Diode SS54 SS56 SS510 SMC Package

SS52 THRU SS520

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts

Forward Current - 5.0 Ampere

Ss54 Ss56 SMD Schottky Barrier Diode 5a 40V 100V 60V Diode SMC Package

FEATURES

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0

For surface mounted applications

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

Built-in strain relief, ideal for automated placement

High forward surge current capability

High temperature soldering guaranteed: 260 C/10 seconds at terminals

MECHANICAL DATA

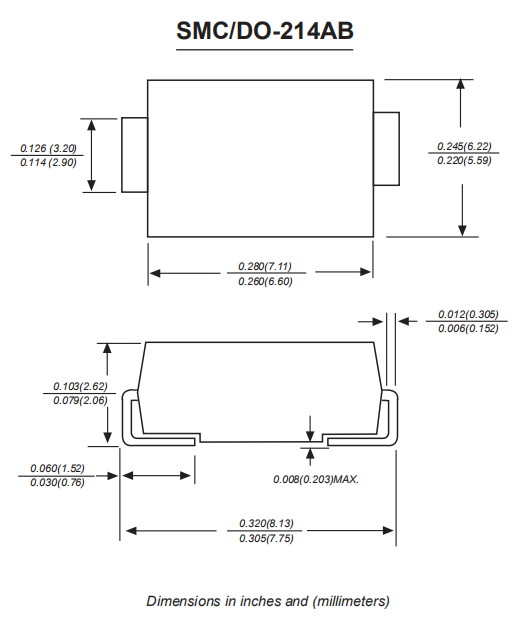

Case: JEDEC DO-214AB molded plastic body

Terminals: leads solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight: 0.007 ounce, 0.25 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

	SYMBOLS	SS52	SS53	SS54	SS55	SS56	SS58	SS510	SS515	SS520	UNITS
Reverse Voltage	VRRM	20	30	40	50	60	80	100	150	200	VOLTS
Forward Current	IAV	5									Amp
Surge Current	IFSM	150									Amps
Forward Voltage	VF	0.45	0.55		0.70		0.85			0.95	Volts
Reverse Current	IR	0.5							0.2		mA
Operating Temperature	TJ	-65 to +125					-65 to +150				℃

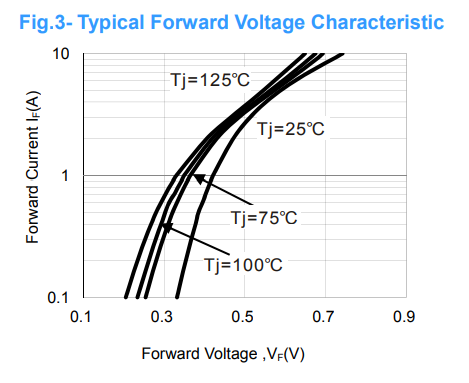

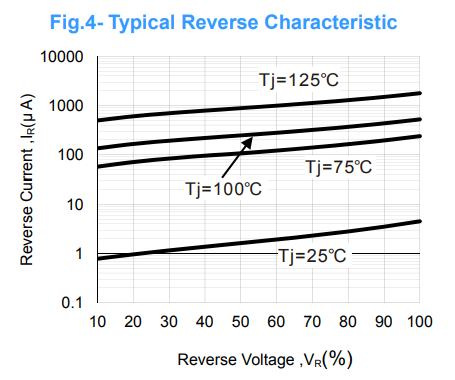

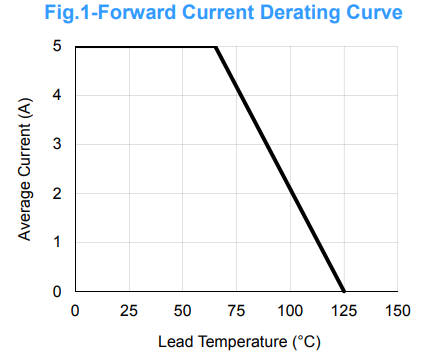

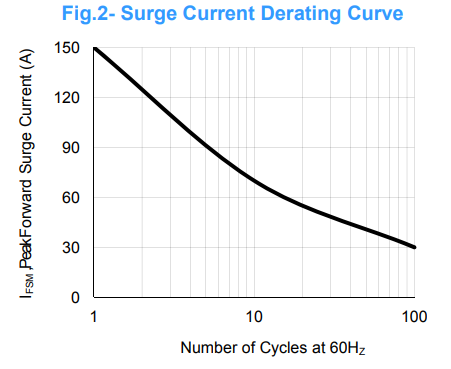

RATINGS AND CHARACTERISTIC CURVES

Product Tags:

ss54 smd diode

SS510 diode

ss56 schottky diode 5a 40V

Ss54 Ss56 SMD Schottky Barrier Diode 5a 40V 100V 60V Diode SMC Package Images
