1A 1000V FRD Fast Reverse Recovery Diode For Audio BA157 BA159 DO 41 0.7mm

Product Categories
Changzhou Trustec Company Limited
Contact Now

1A 1000V FRD Fast Reverse Recovery Diode For Audio BA157 BA159 DO 41 0.7mm

  • 1
  • 2
  • 3

Brand Name : trusTec

Model Number : BA159

Certification : ROHS

Place of Origin : China

MOQ : 2.5K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 2.5K PCS per Ammo Pack, 45K PCS per carton.

Material : Silicon

Trr : 300ns

Max. reverse voltage : 1000V

Max. forward current : 1A

Max. forward voltage : 1.3V

Package : DO-41

Contact Now

0.7mm DO-41 1A 400V 600V 1000V Fast Recovery Rectifier Diode BA157 BA159 Plastic Silicon Packaging

BA157 THRU BA159
FAST RECOVERY RECTIFIERS
Reverse Voltage - 400 to 1000 Volts Forward Current - 1.0 Ampere

MAXIMUM RATINGS

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%

 SYMBOLS
BA157S
BA158S
BA159S

BA157
BA15S
BA159
UNITS
Maximum repetitive peak reverse voltage
VRRM
4006001000
VOLTS
Maximum RMS voltage
VRMS
280420700
VOLTS
Maximum DC blocking voltage
VDC
4006001000
VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃
I(AV)
1.0
Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
30.0
Amps
Maximum instantaneous forward voltage at 6.0A
VF
1.3
Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃10


5.0

50



µA
Maximum reverse recovery time (NOTE 1)
trr
150250500ns
Typical junction capacitance (NOTE 2)
CJ
15.0pF
Typical thermal resistance (NOTE 3)
RθJA
50.0℃/W
Operating junction and storage temperature range
TJ,TSTG
-65 to +150
℃



Note:
1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted


Product Drawing
1A 1000V FRD Fast Reverse Recovery Diode For Audio BA157 BA159 DO 41 0.7mm




FEATURES

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-41 molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.012 ounce, 0.33 grams
            0.008 ounce, 0.23 grams A-405

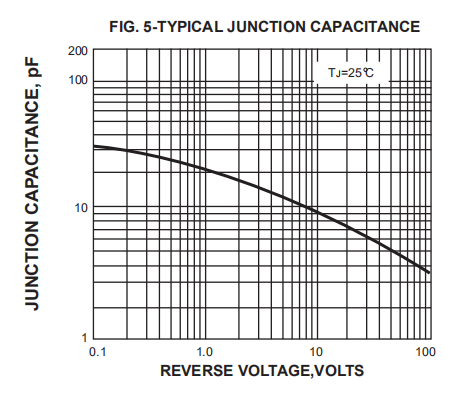

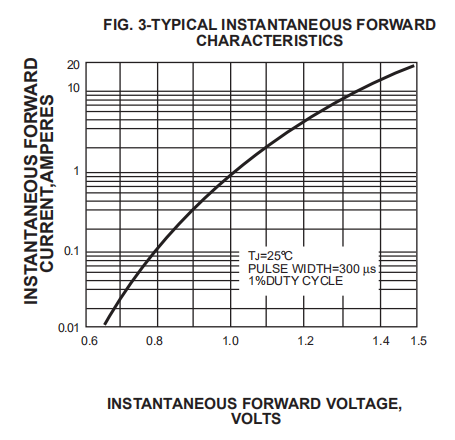

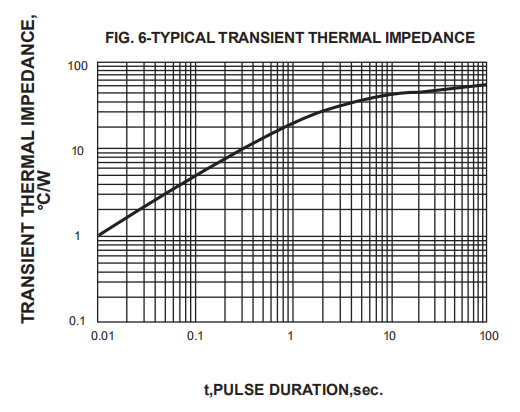

Characteristic Curves


1A 1000V FRD Fast Reverse Recovery Diode For Audio BA157 BA159 DO 41 0.7mm
1A 1000V FRD Fast Reverse Recovery Diode For Audio BA157 BA159 DO 41 0.7mm
1A 1000V FRD Fast Reverse Recovery Diode For Audio BA157 BA159 DO 41 0.7mm
1A 1000V FRD Fast Reverse Recovery Diode For Audio BA157 BA159 DO 41 0.7mm
