DB4 DB6 Db3 Diode Bidirectional A 405 Axial Plastic Package

Name: DB4 DB6 Db3 Diode Bidirectional A 405 Axial Plastic Package
Brand: trusTec
Price: 1 USD

Buy cheap DB4 DB6 Db3 Diode Bidirectional A 405 Axial Plastic Package product

Brand Name : trusTec

Model Number : DB3

Certification : ROHS

Place of Origin : China

MOQ : 5K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 5K PCS per tape & box, 50K PCS per carton.

VBO : 28-36V

VBO Typ : 32V

Package : A-405

IBO : 100μA

Type : DIAC

Package type : Through Hole

Material : Silicon

Power : 150mW

Contact Now

DB3

BIDIRECTIONAL TRIGGER DIODE

Breakover Voltage - 32 Volts Power- 150mW

DB4 DB6 Db3 Diode Bidirectional A 405 Axial Plastic Package

Product Details

Small glass structure ensures high reliability

VBO:28-36V version

Low breakover current

High temperature soldering guaranteed 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

MECHANICAL DATA

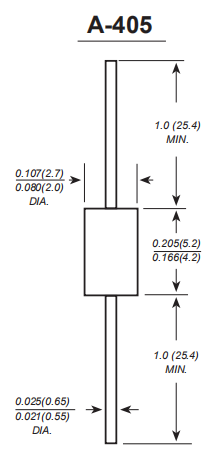

Case: JEDEC DO-35 glass body / A-405 plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Mounting Position: Any

Weight: DO-35 0.005 ounce, 0.14gram

A-405 0.008 ounce, 0.23gram

MAXIMUM RATINGS AND CHARACTERISTICS

	TEST CONDITION	SYMBOLS	VALUE			UNITS
	TEST CONDITION	SYMBOLS	Min.	Typ.	Max.	UNITS
Breakover voltage	C=22nF	VBO	28	32	36	VOLTS
Breakover voltage symmetry	C=22nF	I+VBOI-I-VBOI	-3		3	VOLTS
Dynamic breakover voltage	(NOTE 1)	I D V ± I	5			VOLTS
Output voltage	DIAGRAM2	VO	5			VOLTS
Breakover current	C=22nF	IBO			100	mA
Rise time	DIAGRAM3	tr		1.5		mS
Leakage current	VR=0.5VBO	IB			10	mA
Power dissipation on printed circuit	TA=65 C	Pd			150	mW
Repetitive peak on-state current	tp=20ms f=100Hz	ITRM			2	A
Thermal Resistances from Junction to ambient		RQJA			400	℃/W
Thermal Resistances from Junction to lead		RQJL			150	℃/W
Operating junction and storage temperature range		TJ,TSTG			125	℃

CHARACTERISTIC CURVES

DB4 DB6 Db3 Diode Bidirectional A 405 Axial Plastic Package
