200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15

Product Categories
Changzhou Trustec Company Limited
Contact Now

200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15

Brand Name : trusTec

Model Number : SR220 THRU SR2100

Certification : ROHS

Place of Origin : China

MOQ : 3K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 3K PCS per tape & box, 30K PCS per carton.

Max. reverse voltage : 20V - 200V

Max. forward current : 2A

Max. forward voltage : 0.95V

Package : DO-15

Package type : Through Hole

Type : Schottky Diode

Contact Now

200V 2A DO-15 Through Hole Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0

RoHS COMPLIANT
SR220 THRU SR2200
SCHOTTKY BARRIER RECTIFIERS
Reverse Voltage - 20 to 200 Volts Forward Current - 2.0 Ampere

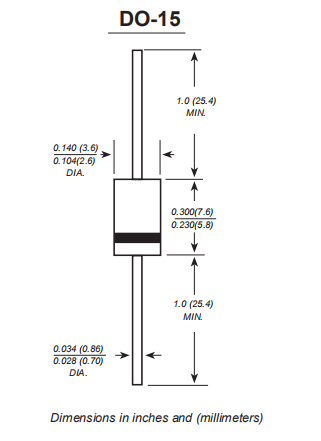

Product Drawing



200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15



MAXIMUM RATINGS

  SYMBOLS SB 220 SB 230 SB 240 SB 250 SB 260 SB 270 SB 280 SB 290 SB 2100 SB 2150 SB 2200 UNITS
Maximum repetitive peak reverse voltage VRRM 20 30 40 50 60 70 80 90 100 150 200 VOLTS
Maximum RMS voltage VRMS 14 21 28 35 42 49 56 63 70 105 140 VOLTS
Maximum DC blocking voltage VDC 20 30 40 50 60 70 80 90 100 100 200 VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1) I(AV) 2.0 Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)



IFSM

 60.0



Amps
Maximum instantaneous forward voltage at 2.0A VF 0.55 0.70 0.85 0.95 Volts

Maximum DC reverse current TA=25℃

at rated DC blocking voltage TA=100℃

 IR 0.5 0.2 mA
10.0 5.0 2.0
Typical junction capacitance (NOTE 1) CJ 220 80 pF
Typical thermal resistance (NOTE 2) RqJA 50.0 ℃/W
Operating junction temperature range TJ -65 to +125 -65 to +150 ℃
Storage temperature range TSTG -65 to +150 ℃



Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Metal silicon junction,majority carrier conduction
Low power loss,high efficiency
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-15 molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.014 ounce, 0.40 grams

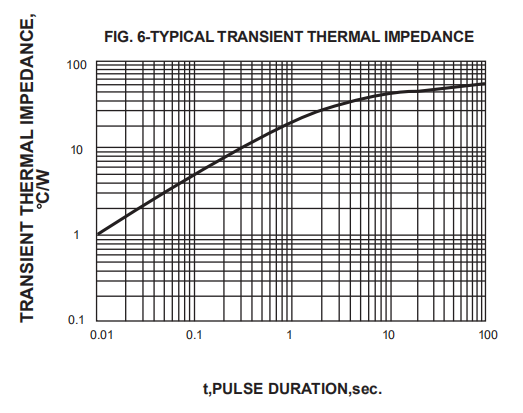

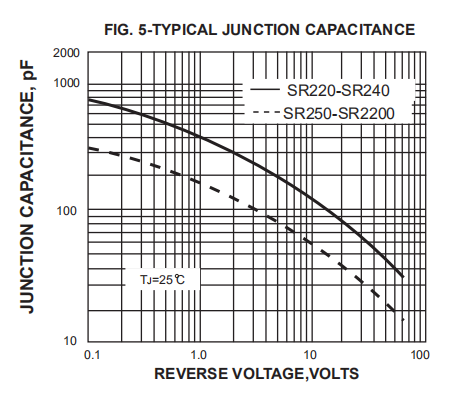

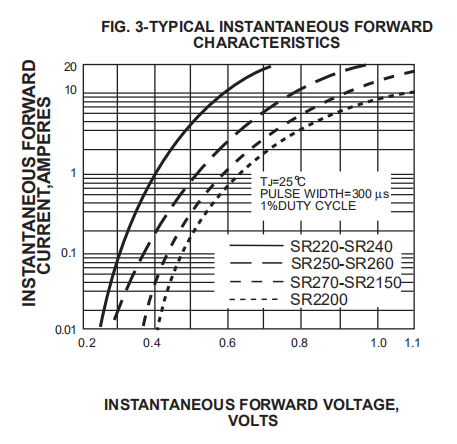

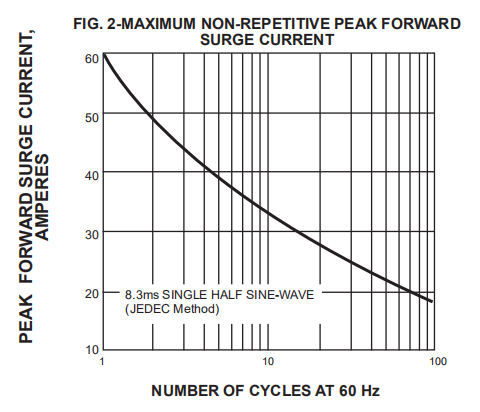

Characteristic Curves

200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15
200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15
200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15
200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15
200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15
200V 2a Schottky Barrier Rectifier Diode SR240 SR260 SR2100 SR2A0 DO 15
