MUR 1 Amp Ultra Fast Recovery Rectifier Diode MUR120 MUR140 MUR160 200V 400V 600V

  • 1
  • 2
  • 3

Brand Name : trusTec

Model Number : MUR160

Certification : ROHS

Place of Origin : China

MOQ : 5K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 5K PCS per tape & box, 50K PCS per carton.

Material : Silicon

Package : DO-41

Trr : 50ns

Max. forward voltage : 1.25V

Max. forward current : 1A

Max. reverse voltage : 600V

Contact Now

1Amp MUR Ultra Fast Recovery Rectifier Diode MUR120 MUR140 MUR160 200V 400V 600V DO-41 Tape Packing
MUR105 THRU MUR1100
ULTRA FAST RECTIFIERS
Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere



MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.



 SYMBOLS
MUR
105
MUR
110
MUR
120
MUR
140
MUR
160
MUR
180
MUR
1100
UNITS
Maximum repetitive peak reverse voltage
VRRM
501002004006008001000
VOLTS
Maximum RMS voltage
VRMS
3570140280420560700
VOLTS
Maximum DC blocking voltage
VDC
501002004006008001000
VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃
I(AV)
1.0
Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)
IFSM
30
Amps
Maximum instantaneous forward voltage at 6.0A
VF0.951.251.65
Volts
Maximum DC reverse current TA=25℃
at rated DC blocking voltage TA=100℃10
IR

5.0

50.0

µA
Maximum reverse recovery time (NOTE 1)
trr
255075ns
Typical junction capacitance (NOTE 2)
CJ
25.0pF
Typical thermal resistance (NOTE 3)
RθJA
50.0℃/W
Operating junction and storage temperature range
TJ,TSTG
-55 to +150
℃



Note:
1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted

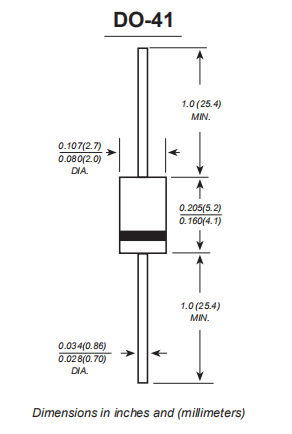

Product Drawing

MUR 1 Amp Ultra Fast Recovery Rectifier Diode MUR120 MUR140 MUR160 200V 400V 600V


FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ultra fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension

MECHANICAL DATA
Case: JEDEC DO-41 molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.012 ounce, 0.33 grams

Characteristic Curves
