15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing

Name: 15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing
Brand: trusTec
Price: 1 USD

Buy cheap 15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing product

Brand Name : trusTec

Model Number : MUR1560

Certification : ROHS

Place of Origin : China

MOQ : 1K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 50 PCS per tube, 1K PCS per box, 5K PCS per carton.

Material : Silicon

Package : TO-220AC

Trr : 35ns

Max. forward voltage : 0.98V

Max. forward current : 15A

Max. reverse voltage : 600V

Contact Now

15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing

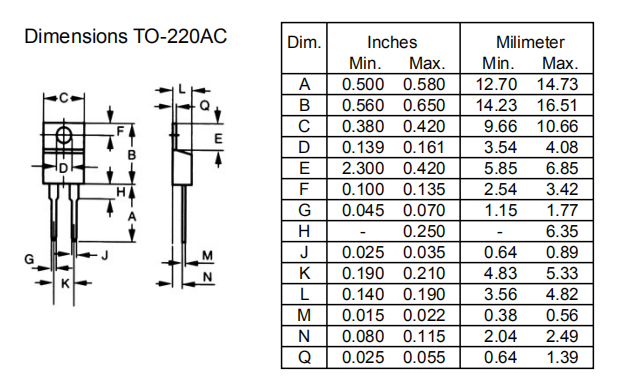

DIMENSIONS
15A 600V Ultra Fast Recovery Rectifier Diode MUR1560 Single Leg Tube Packing

Symbol	Test Conditions	Maximum Ratings
		MUR1520	MUR1540	MUR1560	Unit

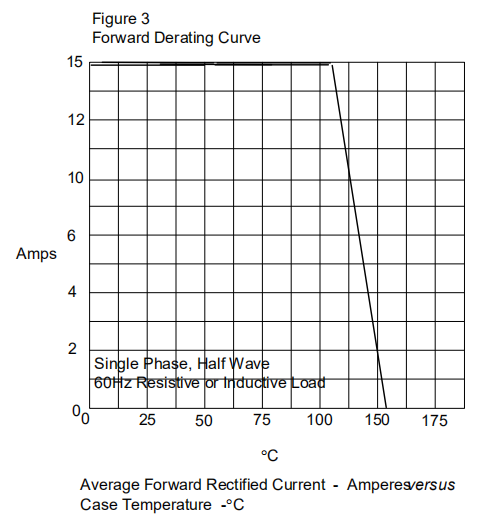

IFRMS IFAVM	TVJ=TVJM TC=115^oC; rectangular, d=0.5	22 15	22 15	22 15	A
IFRM	tp<10us; rep. rating, pulse width limited by TVJM	170	170	170

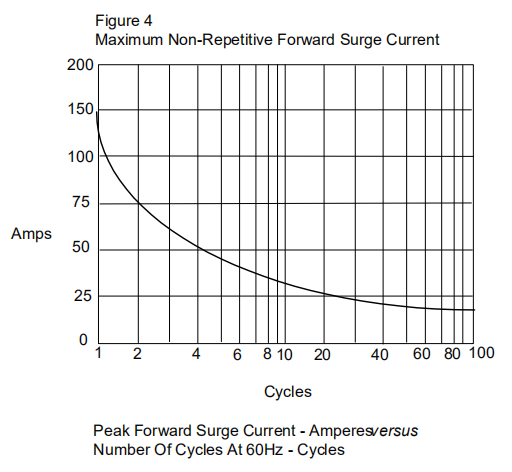

IFSM	TVJ=45^oC t=10ms (50Hz), sine t=8.3ms (60Hz), sine	250 270	230 250	210 230	A
	TVJ=150 C t=10ms(50Hz), sine	190	170	150
	t=8.3ms(60Hz), sine	210	190	170
	TVJ=45^oC t=10ms (50Hz), sine t=8.3ms (60Hz), sine	50	50	50
I²t		50	50	50	A²s
	TVJ=150 C t=10ms(50Hz), sine	36	36	36
	t=8.3ms(60Hz), sine	37	37	37
TVJ TVJM		-40...+150 150			oC
Tstg		-40...+150
Ptot	TC=25^oC	80			W
Md	Mounting torque	0.4...0.6			Nm
Weight		2			g

Symbol	Test Conditions	Characteristic Values
		MUR1520	MUR1540	MUR1560	Unit

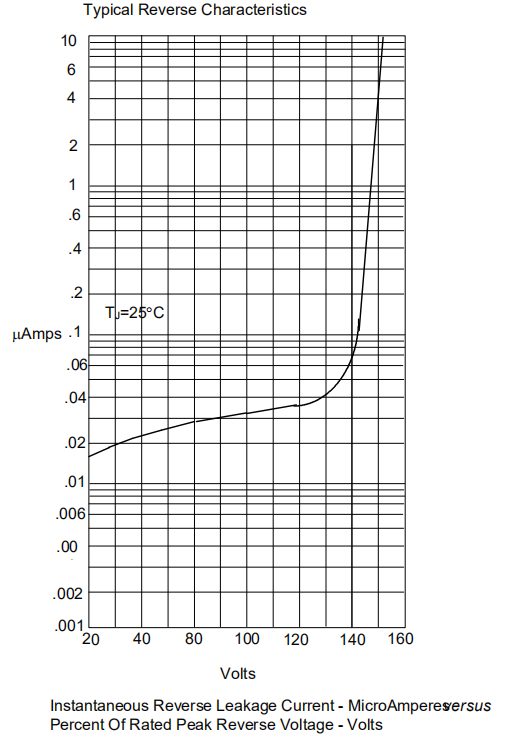

IR	TVJ=25^oC; VR=VRRM TVJ=25^oC; VR=0.8.VRRM TVJ=125^oC; VR=0.8.VRRM	20 10 1.5	20 10 1.5	20 10 1.5	uA uA mA

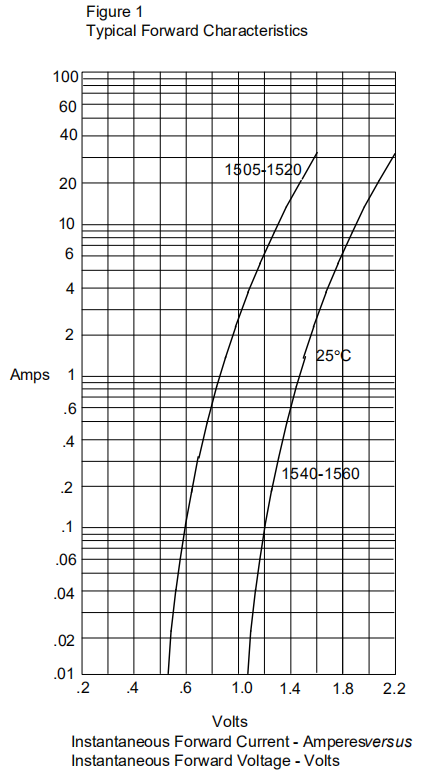

VF	IF=16A; TVJ =150^oC TVJ=25^oC	1.0 1.2	1.2 1.4	1.3 1.6	V
VTO	For power-loss calculations only	0.78	0.85	0.98	V
rT	TVJ=TVJM	25.5	27.8	28.7	m
RthJC		2.5
RthCK		0.5			K/W
RthJA		60
trr	IF=1A; -di/dt=50A/us; VR=30V; TVJ=25^oC	35			ns
IRM	VR=350V; IF=8A; -diF/dt=64A/us; L<_0.05uH; TVJ=100^oC	2.8			A

FEATURES

International standard package JEDEC TO-220AC

Planar passivated chips

Very short recovery time

Extremely low switching losses

Low IRM-values

APPLICATIONS

Antiparallel diode for high frequency switching devices

Antisaturation diode

Snubber diode

Free wheeling diode in converters and motor control circuits

Rectifiers in switch mode power supplies (SMPS)

Inductive heating and melting

Uninterruptible power supplies (UPS)

Ultrasonic cleaners and welders
